EE364 On Line Moisture Transmitter , Oil Water Content Testing Equipment

Brand Name : HLA

Model Number : EE364

Certification : ISO9001,CE

Place of Origin : Chongqing,China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C,Western Union

Supply Ability : 1000 sets/year

Delivery Time : 10 days

Packaging Details : Waterproof and shockproof wooden case packing

Measuring range : 0...1aw

Response time t90 : < 10 min. in still oil

Supply voltage : 10*)...28V DC *) 10V+0.02*RL

Power consumption at 24V DC : <40mA

Pressure rating : 0...20 bar (0...290 psi)

Sensor protection : Stainless steel filter

Contact Now

EE364 On Line Moisture Transmitter , Oil Water Content Testing Equipment

Description:

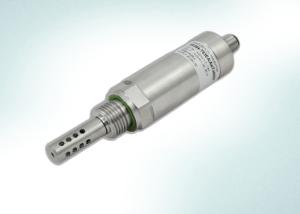

The EE364 is an innovative moisture in oil transmitter, suitable for OEM applications. The high measurement accuracy and excellent long-term stability make the EE364 ideal for online monitoring of moisture in transformer, lubricating and hydraulic oil, as well as diesel fuel.The compact design and rugged stainless steel housing allow a space-saving installation in the most demanding applications.The EE364 measures water activity (aw), oil temperature (t) and calculates the absolute water content (x). The measured values are available on two 4-20mA outputs and one digital output with MODBUS RTU interface.The analog outputs can be individually scaled and configured using the optional converter cable and the free EE-PCS Product Configuration software.

Typical applications :

Monitoring of	Measurement of water activity (aw), temperature and water content (x) in ppm Two configurable 4…20 mA outputs MODBUS-RTU interface Pressure rating 20 bar G ½" ISO or ½" NPT process connection
- Transformer oil
- Lubrication oil
- Hydraulic oil
- Engine oil
- Diesel fuel

Technical data

Measurands:

Water activity
Sensor	HC1000-400
Measurement range	0...1 aw
Accuracy at 20°C1)	±0.02 aw (0...0.9 aw) ±0.03 aw (0.9...1 aw)
Response time t90	< 10 min. in still oil
Temperature
Sensor	Pt1000 DIN A
Accuracy at 20°C in oil	±0.2 °C (0.36 °F)

Output:

2 x analogue output

(freely selectable and scalable for aw, T, ppm)

4 - 20 mA (3-wire technology) RL < 500 Ohm

Digital output

MODBUS RTU

General:

Supply voltage	10)...28V DC ) 10V+0.02*RL
Power consumption at 24V DC	<40mA
Pressure rating	0...20 bar (0...290 psi)
Housing / protection rating	Stainless steel 1.4404 / IP65
Electrical connection	M12x1 8-pin plug
Sensor protection	Stainless steel filter
Oil temperature	40...80 °C (-40...176 °F) / -40...100 °C (-40...212 °F)
Storage temperature	-40...60 °C (-40...140 °F)
Electromagnetic compatibility	EN61326-1 EN61326-2-3 Industrial environment
